ET SERIES 1 FLUTE TEFLON END MILLS
Series: ET-1
Flute Length: Standard
| Part Number | Cutter Diameter |
End Cut | Helix | Flute Length |
# of Flutes |
Shank Diameter |
Overall Length |
Price | Qty Order |
| ET-1-0156-S | 0.0150 | Square End | 30 | 0.0470 | 1 | 1/8 | 1.500 | $19.94 | |
| ET-1-0250-S | 0.0250 | Square End | 30 | 0.0750 | 1 | 1/8 | 1.500 | $16.80 | |
| ET-1-0312-S | 0.0312 | Square End | 30 | 0.0940 | 1 | 1/8 | 1.500 | $15.90 | |
| ET-1-0469-S | 0.0469 | Square End | 30 | 0.1250 | 1 | 1/8 | 1.500 | $15.90 | |
| ET-1-0625-S | 0.0625 | Square End | 30 | 0.1880 | 1 | 1/8 | 1.500 | $15.90 | |
| ET-1-0781-S | 0.0781 | Square End | 30 | 0.2500 | 1 | 1/8 | 1.500 | $15.90 | |
| ET-1-0938-S | 0.0938 | Square End | 30 | 0.3750 | 1 | 1/8 | 1.500 | $15.90 | |
| ET-1-1250-S | 0.1250 | Square End | 30 | 0.4000 | 1 | 1/8 | 1.500 | $15.90 |
ET SERIES 2 FLUTE PCB END MILLS
Series: ET-2
Flute Length: Standard
| Part Number | Cutter Diameter |
End Cut | Helix | Flute Length |
# of Flutes |
Shank Diameter |
Overall Length |
Price | Qty Order |
| ET-2-0156-F | 0.0156 | Fish Tail | 30 | 0.0470 | 2 | 1/8 | 1.500 | $11.20 | |
| ET-2-0250-F | 0.0250 | Fish Tail | 30 | 0.0750 | 2 | 1/8 | 1.500 | $9.37 | |
| ET-2-0312-F | 0.0312 | Fish Tail | 30 | 0.1250 | 2 | 1/8 | 1.500 | $9.37 | |
| ET-2-0469-F | 0.0469 | Fish Tail | 30 | 0.1250 | 2 | 1/8 | 1.500 | $9.37 | |
| ET-2-0625-F | 0.0625 | Fish Tail | 30 | 0.2500 | 2 | 1/8 | 1.500 | $9.37 | |
| ET-2-0781-F | 0.0781 | Fish Tail | 30 | 0.2500 | 2 | 1/8 | 1.500 | $11.00 | |
| ET-2-0938-F | 0.0938 | Fish Tail | 30 | 0.3750 | 2 | 1/8 | 1.500 | $11.00 | |
| ET-2-1250-F | 0.1250 | Fish Tail | 30 | 0.4000 | 2 | 1/8 | 1.500 | $11.00 |
ET SERIES 4 FLUTE SLOT MILLS
Series: ET-4
Flute Length: Standard
| Part Number | Cutter Diameter |
End Cut | Helix | Flute Length |
# of Flutes |
Shank Diameter |
Overall Length |
Price | Qty Order |
| ET-4-0156-C | 0.0156 | Square End | 30 | 0.0470 | 4 | 1/8 | 1.500 | $9.37 | |
| ET-4-0250-C | 0.0250 | Square End | 30 | 0.0750 | 4 | 1/8 | 1.500 | $9.37 | |
| ET-4-0312-C | 0.0312 | Square End | 22 | 0.2150 | 4 | 1/8 | 1.500 | $9.37 | |
| ET-4-0469-C | 0.0469 | Square End | 22 | 0.2150 | 4 | 1/8 | 1.500 | $9.37 | |
| ET-4-0625-C | 0.0625 | Square End | 30 | 0.3150 | 4 | 1/8 | 1.500 | $9.37 | |
| ET-4-0781-C | 0.0781 | Square End | 30 | 0.2500 | 4 | 1/8 | 1.500 | $11.00 | |
| ET-4-0938-C | 0.0938 | Square End | 30 | 0.3750 | 4 | 1/8 | 1.500 | $11.00 | |
| ET-4-1250-C | 0.1250 | Square End | 22 | 0.4000 | 4 | 1/8 | 1.500 | $11.00 |
Circuit Board End Mills
Circuit Board End Mills
Features- Miniature & Sub Miniature
- Standard Length
- Primary Relief Angles on Most Tools
- Rake Designed Specifically for Electronic Applications
- Designed for Excellent Swarf Evacuation
- Teflon & Prepreg Operations
- Flexible Circuit Board Routing
- High Finish Slotting and Profiling

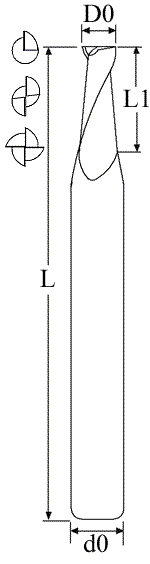

- D0 +.000" -.002"
- L1 +.015" -.000"
- d0 +.0000" -.0002"
- L +/-.005"
for additional tool information.
